Product Details
- Size: 113
- Place of Origin: jining
- Brand Name:
- Model Number: ZZ5667VDVB30600
- Weight: 43500.000 kg

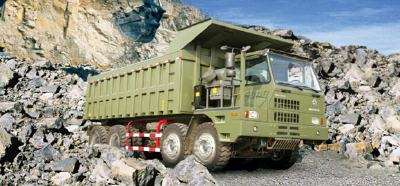

| HAOV 8×4 Mine Dump TRUCK QUOTATION | |||||
| No. | Model | Driving type | Engine output | Dimension of the Van Body | Unit price FOB China Main Port USD |
| 1 | ZZ5667VDVB30600 | 8X4 | 420hp | 8800x3000x3150(mm) | |
| MAIN SPECIFICATIONS | |||||
| Model | ZZ5667VDVB30600 | Fuel tank capccity (L) | 400 | ||
| Engine | Brand SINOTRUK | Gross Vehicle Weight | 43500kg | ||
| D12.42 | Kerb Weight | 21500kg | |||
| Maximum Output | 300HP | Tyres | 13.00-25 | ||
| Rated engine power (KW/r/min) | 309/2000 | Wheelbase | 1800+3000+1500mm | ||
| Transmission | HW19710C | Minimum turning diameter | 23m | ||
| Front Axle | strengthened reinforced steel I-shape front axle | Max.gradeability(%) | 47 | ||
| Max.loading:12000kg | Approach/departure angle | 29°/37.5° | |||
| Rear Axle | strengthened wide steel dual reducing & double tire drive axle | Hydraulic cylinder | Front-tipping | ||
| Max.loading:25000kg Ratio:10.24 | |||||
| Cab | Stressed skin frame and large-plate single stronger mine-purposed | Maximum Speed | 45 km/h | ||
| Overall Dimension（ mm ） | 9550x3000x3750 | ||||
