Product Details
- Size: 100
- Place of Origin: jining
- Brand Name:
- Model Number: ZZ5315GJBN3666D1
- Weight: 31000.000 kg

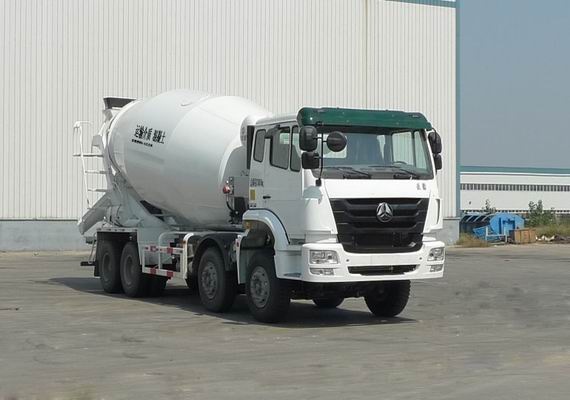

| HOHAN MIXER TRUCK QUOTATION | |||||
| No. | Model | Driving type | Engine output | Drum volume M 3 | Unit price FOB China Main Port USD |
| 1 | ZZ5315GJBN3666D1 | 8X4 | 371hp | 12 | |
| MAIN SPECIFICATIONS | |||||
| Model | ZZ5315GJBN3666D1 | Steering | ZF8098 | ||
| Engine | Brand SINOTRUK | Gross Vehicle Weight | 31000kg | ||
| WD615.47 | Kerb Weight | 13960kg | |||
| Maximum Output | 371HP | Tyres | 12.00R20(Radial) | ||
| Rated engine power (KW/r/min) | 273/2200 | Reducer | TOPUNION P75S | ||
| Pump | Italy ARK PV 089 | ||||
| Transmission | HW19710(10forward,2reverse) | Motor | Italy ARK MF090A | ||
| Front Axle | HF9 | Geometric volume M3 | 18.56 | ||
| Max.loading:9000kg | Agitating capacity | 12 | |||
| Rear Axle | HC16 Ratio:5.73 | Discharging remain ration | ≤0.2 | ||
| Max.loading:16000kg | |||||
| Cab | HOWO76 (singer bed) | Maximum Speed | 90 km/h | ||
| Air-condition | Drum Slope(°) | 12 | |||
| Overall Dimension（ mm ） | 9930x2500x3990 | ||||
