Product Details
- Size: 96cbm
- Place of Origin: jining
- Brand Name:
- Model Number: ZZ1315M4666C1
- Weight: 31000.000 kg

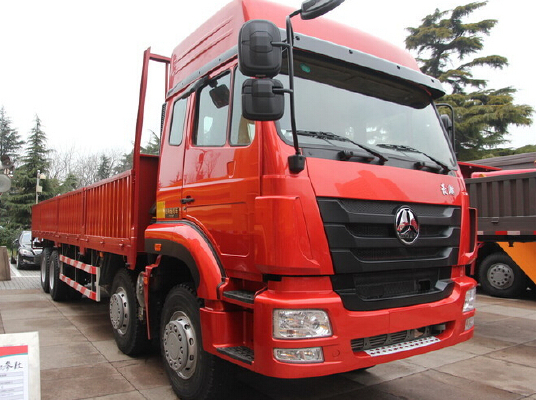

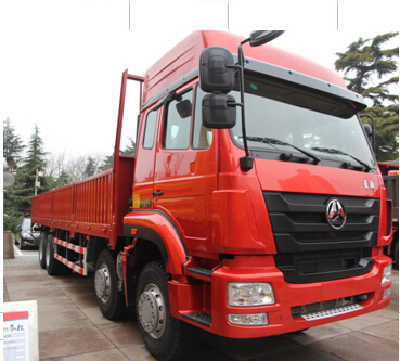

HOHAN 8×4 Flatbed Cargo TRUCK QUOTATION | |||||
No. | Model | Driving type | Engine output | Dimension of the Van Body | Unit price FOB China Main Port USD |
1 | ZZ1315M4666C1 | 8X4 | 300hp | 9500×2340×600(mm) | |
MAIN SPECIFICATIONS | |||||
Model | ZZ1315M4666C1 | Steering | ZF8098 | ||
Engine | Brand SINOTRUK | Gross Vehicle Weight | 31000kg | ||
WD615.97E | Kerb Weight | 11690kg | |||
Maximum Output | 300HP | Tyres | 11.00-20 | ||
Rated engine power (KW/r/min) | 221/2200 | Wheelbase | 1800+4600+1350mm | ||
Transmission | HW13710C(10forward,2reverse) | Loading Capacity | 19180kg | ||
Front Axle | HF7 | ||||
Max.loading:6500kg | |||||
Rear Axle | HC16 Ratio:4.875 | Cargo type | Flatbed | ||
Max.loading:17500kg | |||||
Cab | H18(two bed) | Maximum Speed | 102 km/h | ||
Air-condition | |||||
Overall Dimension( mm ) | 11995×2496×3170 |
