Product Details
- Size: 68
- Place of Origin: jining
- Brand Name:
- Model Number: ZZ1257M5247C
- Weight: 25000.000 kg

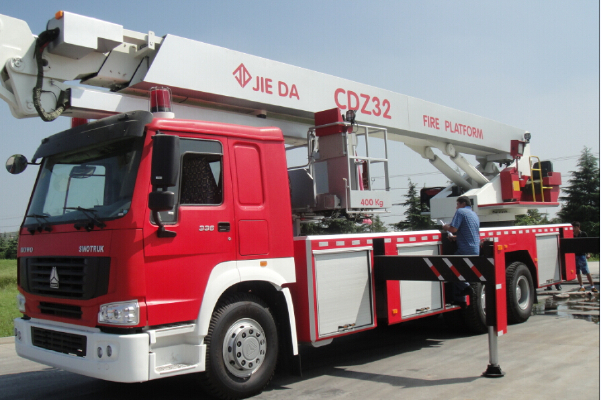

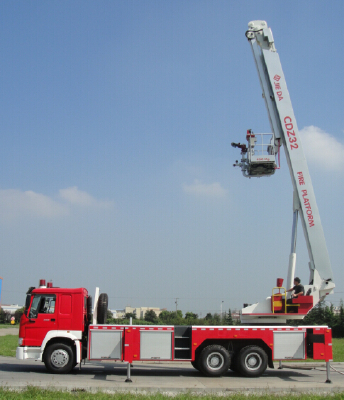

| HOWO Fire truck | |||||
| No. | Model | Driving type | Engine output | Unit price FOB China Main Port USD | |
| 1 | ZZ1257M5247C | 6X4 | 336hp | ||
| MAIN SPECIFICATIONS | |||||
| Model | ZZ1257M5247C | Steering | ZF8098 | ||
| Engine | Brand SINOTRUK | Gross Vehicle Weight | 25000kg | ||
| WD615.95 | Kerb Weight | 11150kg | |||
| Maximum Output | 336HP | Tyres | 12.00R20(Radial) | ||
| Rated engine power (KW/r/min) | 247/2200 | Working height | 32m | ||
| Max. working range | 16m | ||||
| Transmission | HW13710(10forward,2reverse) | Cage payload | 400kg | ||
| Front Axle | HF7 | Boom Oscillation range | -3°-8° | ||
| Max.loading:7000kg | Jib Oscillation range | 0-180° | |||
| Rear Axle | ST16 | Slewing range | 360° | ||
| Max.loading:16000kg | Boom response time | ≤ 180s | |||
| Cab | Original single | Jack span dis. (H×L) | 6025×5.6M | ||
| Air-condition | Jack extension tim | ≤ 30s | |||
| Slewing speed | 0—2r/min | Cage cannon | 24-80L/s | ||
| Overall Dimension（ mm ） | 9120*2490*2958 | ||||
