Product Details
- Size: 34
- Place of Origin: jining
- Brand Name:
- Model Number: QDZ5220TQY
- Weight: 23150.000 kg

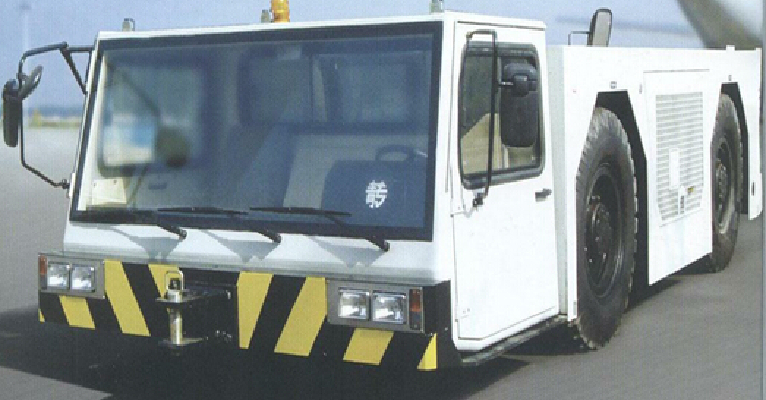

| Aircraft 4x4 Tractor QUOTATION | |||||
| No. | Model | Driving type | Engine output | Unit price FOB China Main Port USD | |
| 1 | QDZ5220TQY | 4X4 | 260HP | ||
| MAIN SPECIFICATIONS | |||||
| Chassis Model | QDZ5220TQY | Steering | four-wheel steering | ||
| Engine | 6-cylinder in-line with water cooling, turbo-charging | Minimum Ground clearance | 200mm | ||
| C260.20 EURO II | Kerb Weight | 23000kg | |||
| Brakes | service brake:double-loop hydraulic brake | parking brake:disc brake | G.V.W (kg) | 23150kg | |
| Rated Torque | 1025Nm | Tyres | 12.00-24 | ||
| Rated engine power | 191KW | Cab | Crop metal jointing | ||
| Transmission | Ratio:2.5;8.9 | Air-condition | |||
| Generator | DC28V,70A | Wheelbase | 3000mm | ||
| Starter | DC24V,7.8kw | Maximum turing ciecle | ≤ 9.3m | ||
| Maximum Traction | High gear:45KN | Maximum traction mass | 230T | ||
| Low gear:170KN | Max speed km/h | 30km/h | |||
| Overall Dimension（ mm ） | 6646*2560*2040 | ||||
