Product Details
- Size: 90
- Place of Origin: jining
- Brand Name:
- Model Number: ZZ1167G4715C1
- Weight: 15795.000 kg

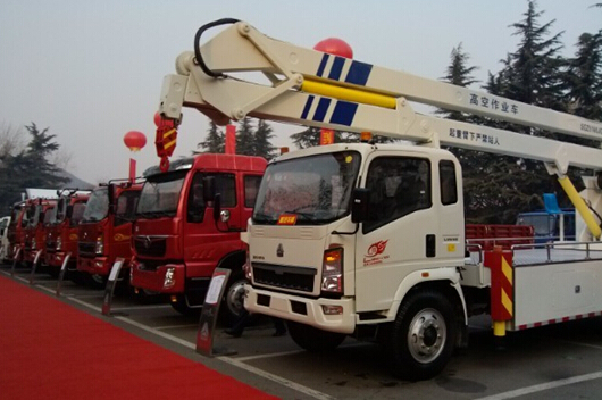

| 22m Hydraulic Aerial Cage QUOTATION | |||||
| No. | Model | Driving type | Engine output | Unit price FOB China Main Port USD | |
| 1 | ZZ1167G4715C1 | 4X2 | 150HP | ||
| MAIN SPECIFICATIONS | |||||
| Chassis Model | ZZ1167G4715C1 | Steering | power steering | ||
| Engine | YC4E140-33 | Approach/departure angle | 30°/15° | ||
| Transmission | DC6J48TC | Kerb Weight | 5460kg | ||
| Rated engine power | 105KW | G.V.W(kg) | 15795kg | ||
| Outrigger type and number | H-type、4 flexible and adjustable | Tyres | 9.00-20 | ||
| Working Cage Loading Capacity | 200kg | Cab | 2080(one bed) | ||
| Cage Dimension(mm) | 1200×600×1100 | Air-condition | |||
| Turing Angle | 360° | Wheelbase | 4700mm | ||
| Operation Type | electric control、 operating on cage | Max speed km/h | 95km/h | ||
| Maximum Lifting Height | 9m | Maximum Operation Height | 22m | ||
| Maximum Lifting Weight | 1T | Maximum Operation Range | 10.2m | ||
| Overall Dimension（ mm ） | 10000×2490×3700 | ||||
